HD50 Swingover Milking Parlour
The ATL HD50 Swingover parlour provides the user with efficient solutions to milking dairy herds milking one side at a time.
Key Features
Efficient and productive
A batch milking system to help streamline your process.
Cost effective
Faster milking times and reduced energy costs.
High throughput
High capacity milk and vacuum lines provide efficient milk transport and stable vacuum levels.
Automation options
Different levels of automation available.
Modular and future proof
No need to constantly replace with newer models.
Customisable
All features are completely customisable.

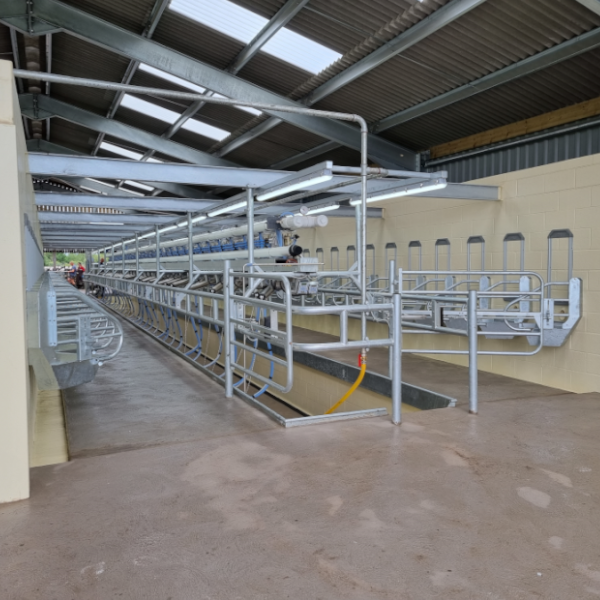

The ATL HD50 Swingover parlour provides the user with efficient solutions to milking dairy herds milking one side at a time. The swingover parlour allows the user to switch from side to side once a cow has finished milking, the opposing side of cows can be milked, eliminating idle clusters.
- 1700mm wide milking pit
- The central box unit completely covers the wiring and some milk meter electronics, keeping the equipment much cleaner and neater
- 50 degree tubular heavy duty stall work includes staggered or straight rump rails including a secondary anti-kick rail underneath for operator protection
- 60mm diameter tubes with 3mm wall thickness, hot dipped galvanised steel
- Wall-mounted galvanised steel mangers manufactured from 3mm thick, heavy duty galvanised steel manger pan / trough
- Tubular steel stall division to give good cow positioning and aid loading and unloading
- High quality, engineered solution designed and manufactured in the UK
- Heavy duty galvanised entry and exit gates are all compressed air operated
- Stainless steel swingover arms to support milk and pulse tubes
- 316-grade stainless steel high level milk line
- 2.5, 3 or 4 inch milk line
- Tri-clover connection fittings
- Option of silicone milk tube and PVC pulse tubes or rubber milk and pulse tubes
- 316-grade stainless steel wash line and milk delivery line
- Compressed air purge of milk delivery line
- Low level pit wall mounted clean in place (CIP) jetters
- 3 or 4 inch vacuum line in white PVC
- Option of clean air line in white PVC
- Stainless top and plastic bottom (manual shut-off) or stainless steel top and bottom claw piece (automatic shut-off)
- 400ml claw capacity
- No turbulence, or milk accumulation
- Excellent vacuum stability
- Promotes good udder health
- Unique entry gate design
- Pushes last cow in side round and into the correct position for attaching cluster
- Stainless steel ACR swingarm
- Swing-to-start for swingover parlours
- Automatic cluster removal
- Milk meters
- In parlour feeding
- Parlour automatic identification
- Backflush
- Up to 5-Way drafting
- Out of parlour feeding
- Variable speed milk pump(s)
- Herd management software
- Automatic plant washer
- Variable speed vacuum pump(s)
- Vacuum pump options
